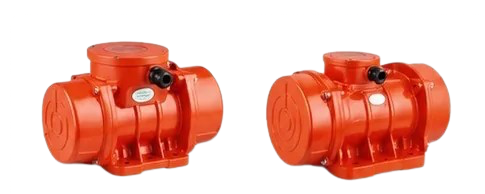

Bonzer BMJ 2 Kutub
Tiga fasa, kecepatan tertinggi untuk material ringan.
- Fasa
- Tiga fasa (220V/380V)
- Kutub
- 2 kutub
- RPM
- 3000 / 3600
- Frekuensi
- 50 / 60 Hz
Beranda Produk Motor Vibrator Bonzer BMJ & BMV
Vibrator · Vibrator Motor · ISO 9001 · CE
Motor Vibrator Bonzer BMJ & BMV
Motor vibrator Bonzer tersedia dalam seri BMJ dan BMV dengan sertifikasi ISO 9001 dan CE. Pilihan jumlah kutub menentukan kecepatan getar, dari 3000 RPM untuk material ringan sampai 750 RPM untuk aplikasi bergetar lambat dengan gaya besar.
Bonzer BMJ Series

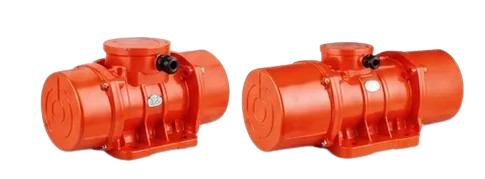

Bonzer BMJ 4 Kutub
Tiga fasa, pilihan paling umum untuk feeder dan ayakan.
- Fasa
- Tiga fasa (220V/380V)
- Kutub
- 4 kutub
- RPM
- 1500 / 1800
- Frekuensi
- 50 / 60 Hz
Bonzer BMV Series

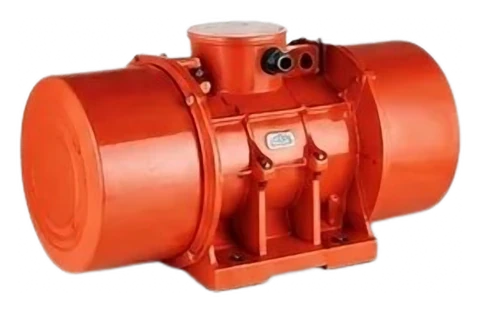

Bonzer BMV 6 Kutub
Tiga fasa, getaran lebih lambat dengan amplitudo besar.
- Fasa
- Tiga fasa (220V/380V)
- Kutub
- 6 kutub
- RPM
- 1000 / 1200
- Frekuensi
- 50 / 60 Hz
Bonzer BMV 8 Kutub
Tiga fasa, kecepatan paling rendah untuk material berat.
- Fasa
- Tiga fasa (220V/380V)
- Kutub
- 8 kutub
- RPM
- 750 / 900
Bonzer BMV 1 Fasa 2 Kutub
Satu fasa 220V untuk instalasi tanpa sumber tiga fasa.
- Fasa
- Satu fasa (220V)
- Kutub
- 2 kutub
- RPM
- 3000
Bonzer BMJ 2 Kutub · 3000 / 3600 RPM
| Model | Tegangan (V) | Arus (A) | Daya (kW) | Gaya (kN) | Berat (kg) | Exn |
|---|---|---|---|---|---|---|
| BMJ2200/2 | 220/380 | 0.70 | 0.15 | 2 | 4.2 | II2G1 |
| BMJ3200/2 | 220/380 | 0.85 | 0.20 | 3 | 4.3 | II2G1 |
| BMJ4200/2 | 220/380 | 1.10 | 0.25 | 4 | 5.5 | II2G1 |
| BMJ8200/2 | 220/380 | 1.15 | 0.30 | 8 | 6.5 | II2G1 |
| BMJ10200/2 | 220/380 | 1.30 | 0.40 | 10 | 7.6 | II2G1 |
| BMJ20200/2 | 220/380 | 1.85 | 0.75 | 20 | 11.2 | II2G1 |
| BMJ30200/2 | 220/380 | 2.10 | 1.10 | 30 | 15.0 | II2G1 |
| BMJ40200/2 | 220/380 | 2.20 | 1.50 | 40 | 17.0 | II2G1 |
| BMJ50200/2 | 220/380 | 2.40 | 1.84 | 50 | 22.0 | II2G1 |
| BMJ1000/2 | 220/380 | 2.60 | 2.20 | 100 | 33.0 | II2G1 |
| BMJ1500/2 | 220/380 | 3.70 | 3.00 | 150 | 36.0 | II2G1 |
| BMJ2000/2 | 220/380 | 4.12 | 3.70 | 200 | 59.0 | II2G1 |
| BMJ2500/2 | 220/380 | 5.20 | 5.50 | 250 | 92.0 | II2G1 |
| BMJ3000/2 | 220/380 | 6.33 | 7.50 | 300 | 97.0 | II2G1 |
| BMJ5000/2 | 220/380 | 9.80 | 11.00 | 500 | 163.0 | II2G1 |
| BMJ8000/2 | 220/380 | 15.4 | 15.00 | 800 | 235.0 | II2G1 |
Bonzer BMJ 4 Kutub · 1500 / 1800 RPM
| Model | Tegangan (V) | Arus (A) | Daya (kW) | Gaya (kN) | Berat (kg) | Exn |
|---|---|---|---|---|---|---|
| BMJ2200/4 | 220/380 | 0.60 | 0.15 | 2 | 4.2 | II2G1 |
| BMJ3200/4 | 220/380 | 0.75 | 0.20 | 3 | 4.3 | II2G1 |
| BMJ4200/4 | 220/380 | 0.90 | 0.25 | 4 | 5.5 | II2G1 |
| BMJ8200/4 | 220/380 | 0.95 | 0.30 | 8 | 6.5 | II2G1 |
| BMJ10200/4 | 220/380 | 1.20 | 0.40 | 10 | 7.6 | II2G1 |
| BMJ20200/4 | 220/380 | 1.50 | 0.75 | 20 | 11.2 | II2G1 |
| BMJ30200/4 | 220/380 | 1.75 | 1.10 | 30 | 15.0 | II2G1 |
| BMJ40200/4 | 220/380 | 2.00 | 1.50 | 40 | 17.0 | II2G1 |
| BMJ50200/4 | 220/380 | 2.40 | 1.84 | 50 | 22.0 | II2G1 |
| BMJ1000/4 | 220/380 | 2.90 | 2.20 | 100 | 33.0 | II2G1 |
| BMJ1500/4 | 220/380 | 3.70 | 3.00 | 150 | 36.0 | II2G1 |
| BMJ2000/4 | 220/380 | 4.20 | 3.70 | 200 | 59.0 | II2G1 |
| BMJ2500/4 | 220/380 | 5.20 | 5.50 | 250 | 92.0 | II2G1 |
| BMJ3000/4 | 220/380 | 6.20 | 7.50 | 300 | 97.0 | II2G1 |
| BMJ5000/4 | 220/380 | 9.80 | 11.00 | 500 | 163.0 | II2G1 |
| BMJ8000/4 | 220/380 | 15.4 | 15.00 | 800 | 235.0 | II2G1 |
Bonzer BMV 6 Kutub · 1000 / 1200 RPM
| Model | Tegangan (V) | Arus (A) | Daya (kW) | Gaya (kN) | Berat (kg) | Exn |
|---|---|---|---|---|---|---|
| BMV300/6 | 220/380 | 0.43 | 0.05 | 0.3 | 2.1 | exdIIBT4 |
| BMV500/6 | 220/380 | 0.63 | 0.09 | 1 | 3.4 | exdIIBT4 |
| BMV800/6 | 220/380 | 0.85 | 0.12 | 2 | 4.4 | exdIIBT4 |
| BMV1000/6 | 220/380 | 1.05 | 0.13 | 2 | 5.4 | exdIIBT4 |
| BMV1500/6 | 220/380 | 1.28 | 0.18 | 3 | 6.6 | exdIIBT4 |
| BMV2000/6 | 220/380 | 1.75 | 0.25 | 5 | 10.7 | exdIIBT4 |
| BMV2500/6 | 220/380 | 2.10 | 0.30 | 5 | 11.3 | exdIIBT4 |
| BMV3000/6 | 220/380 | 2.46 | 0.37 | 8 | 15.0 | exdIIBT4 |
| BMV4000/6 | 220/380 | 3.15 | 0.45 | 10 | 17.8 | exdIIBT4 |
| BMV5000/6 | 220/380 | 3.76 | 0.55 | 10 | 21.0 | exdIIBT4 |
| BMV6500/6 | 220/380 | 4.83 | 0.75 | 15 | 26.3 | exdIIBT4 |
| BMV8000/6 | 220/380 | 6.36 | 1.10 | 20 | 32.2 | exdIIBT4 |
| BMV10000/6 | 220/380 | 7.83 | 1.50 | 30 | 43.2 | exdIIBT4 |
| BMV12000/6 | 220/380 | 9.91 | 1.80 | 40 | 53.5 | exdIIBT4 |
| BMV13000/6 | 220/380 | 11.4 | 2.20 | 50 | 73.2 | exdIIBT4 |
| BMV16000/6 | 220/380 | 14.0 | 3.00 | 75 | 95.2 | exdIIBT4 |
| BMV20000/6 | 220/380 | 17.6 | 3.70 | 100 | 135 | exdIIBT4 |
| BMV26000/6 | 220/380 | 20.0 | 5.50 | 150 | 154 | exdIIBT4 |
| BMV32000/6 | 220/380 | 27.5 | 7.50 | 200 | 195 | exdIIBT4 |

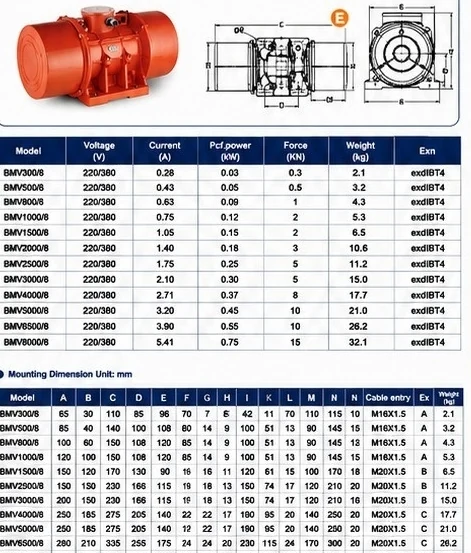

Bonzer BMV 8 Kutub · 750 / 900 RPM
| Model | Tegangan (V) | Arus (A) | Daya (kW) | Gaya (kN) | Berat (kg) | Exn |
|---|---|---|---|---|---|---|
| BMV300/8 | 220/380 | 0.28 | 0.03 | 0.3 | 2.1 | exdIIBT4 |
| BMV500/8 | 220/380 | 0.43 | 0.05 | 0.5 | 3.2 | exdIIBT4 |
| BMV800/8 | 220/380 | 0.63 | 0.09 | 1 | 4.3 | exdIIBT4 |
| BMV1000/8 | 220/380 | 0.75 | 0.12 | 2 | 5.3 | exdIIBT4 |
| BMV1500/8 | 220/380 | 1.05 | 0.15 | 2 | 6.5 | exdIIBT4 |
| BMV2000/8 | 220/380 | 1.40 | 0.18 | 3 | 10.6 | exdIIBT4 |
| BMV2500/8 | 220/380 | 1.75 | 0.25 | 5 | 11.2 | exdIIBT4 |
| BMV3000/8 | 220/380 | 2.10 | 0.30 | 5 | 15.0 | exdIIBT4 |
| BMV4000/8 | 220/380 | 2.71 | 0.37 | 8 | 17.7 | exdIIBT4 |
| BMV5000/8 | 220/380 | 3.20 | 0.45 | 10 | 21.0 | exdIIBT4 |
| BMV6500/8 | 220/380 | 3.90 | 0.55 | 10 | 26.2 | exdIIBT4 |
| BMV8000/8 | 220/380 | 5.41 | 0.75 | 15 | 32.1 | exdIIBT4 |

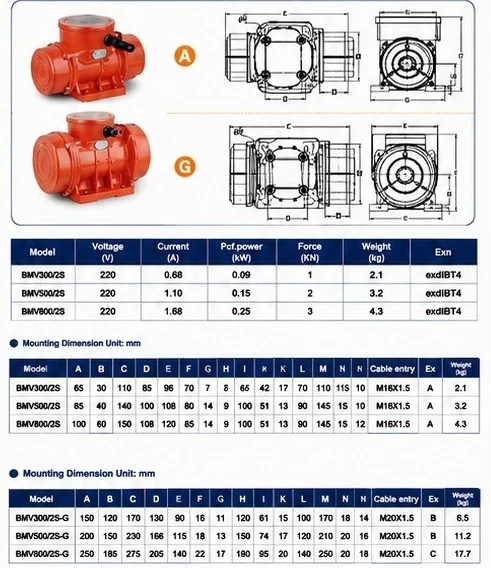

Bonzer BMV 1 Fasa · 2 Kutub · 3000 RPM
| Model | Tegangan (V) | Arus (A) | Daya (kW) | Gaya (kN) | Berat (kg) | Exn |
|---|---|---|---|---|---|---|
| BMV300/2S | 220 | 0.68 | 0.09 | 1 | 2.1 | exdIIBT4 |
| BMV500/2S | 220 | 1.10 | 0.15 | 2 | 3.2 | exdIIBT4 |
| BMV800/2S | 220 | 1.68 | 0.25 | 3 | 4.3 | exdIIBT4 |
Ukuran pemasangan dan dimensi lengkap tersedia atas permintaan.
